The GOOTU 24V 220V 3600W Hybrid Inverter can power all types of home or office appliances, including fans, refrigerators, air conditioners, and more.

This multifunctional inverter/charger combines the functions of an inverter, solar charger, and battery charger to provide continuous power support in a portable size. Its comprehensive LCD display offers user-friendly and easy-to-use buttons, including battery charging current, AC/solar charger priority, and acceptable input voltage for various applications.

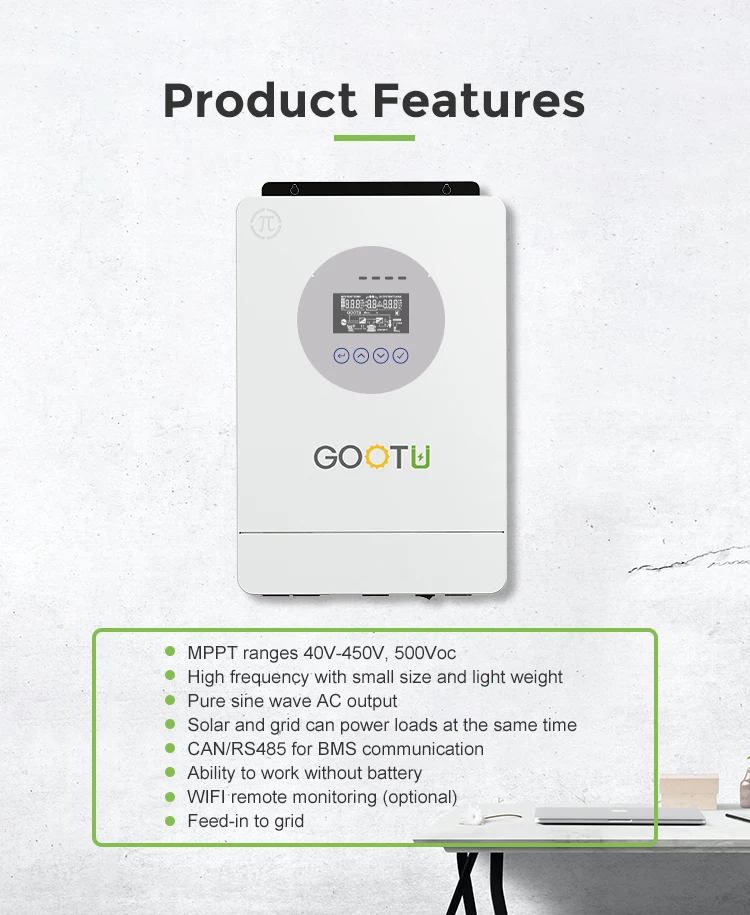

Features:

- Pure sine wave inverter

- Configurable input voltage range for home appliances and personal computers via LCD display settings

- Configurable battery charging current based on applications via LCD display settings

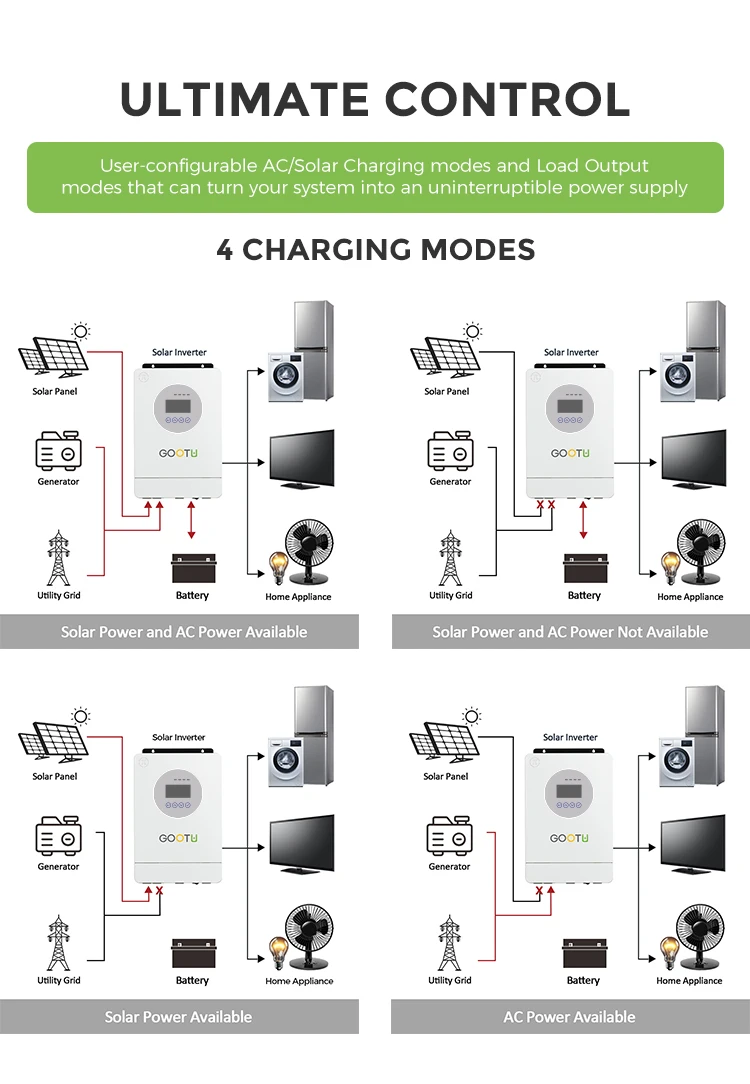

- Priority AC/solar charger configuration via LCD

- Compatible with grid voltage or generator output

- Automatic restart upon AC recovery

- Overload, temperature, and short-circuit protection

- Smart battery charger design for optimized battery performance

- Cold run function

Specifications:

AC Input

Nominal Input Voltage (VAC) - 208/220/230/240 L+N+PE

Voltage Range (VAC) - 90~280±3 (APP Mode)

Frequency (Hz) - 170~280±3 (UPS Mode) 50/60 (Automatic Adaptation)

AC Output

Nominal Power (kW) - 3.6 (Nominal output power will be reduced to 90% when the output voltage is set to 208V)

Peak Power (kVA) - 6.7

Voltage (VAC) - 208/220/230/240

Power Factor (PF) - 1

Frequency (Hz) - 50/60±0.1%

Time Transfer Time (ms) - 10 (APP/UPS mode) / 60 (GEN mode)

Waveform - Pure Sine Wave

Overload Capacity (in battery mode) - 60 sec at 102%~110% load; 10 sec at 110%~130% load;

3 sec at 130%~150% load; 0.2 sec at >150% load

Max. Efficiency (in battery mode - 92.7% at 24 VDC)

Charger (Solar/AC)

Solar Charger Type - MPPT 1

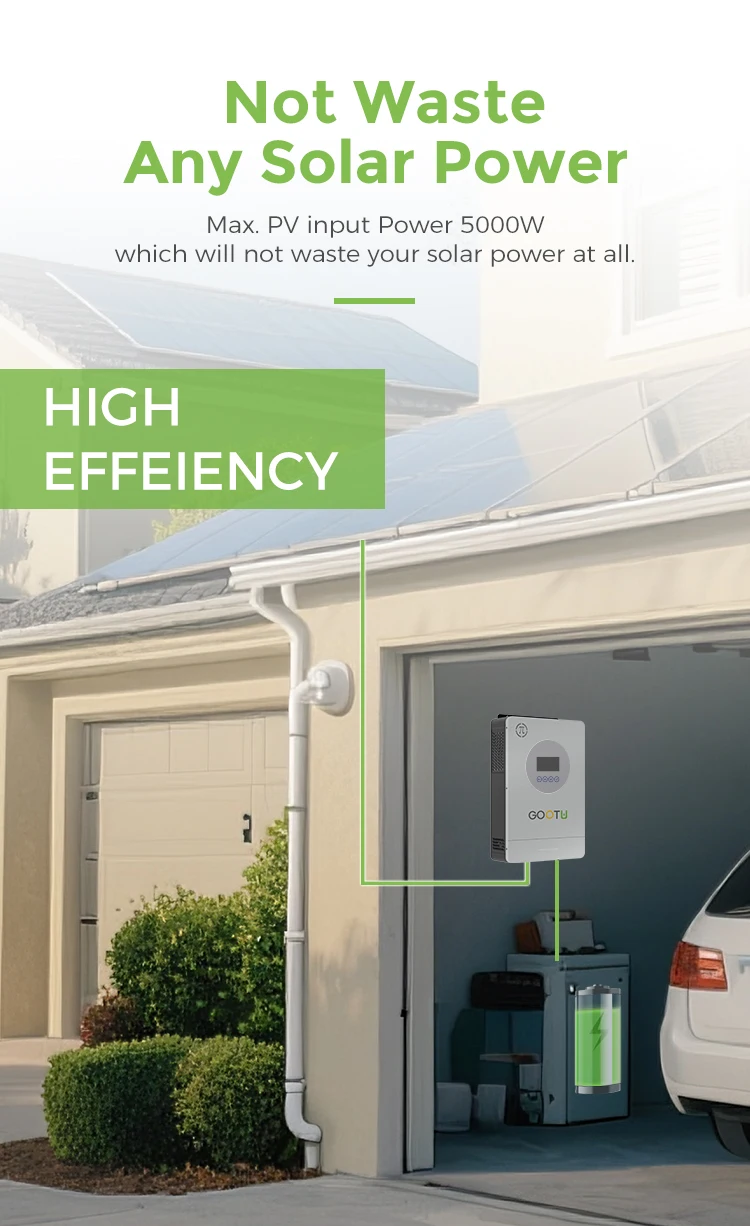

Maximum Solar Input Current/Power - 18 A/5000 W

MPPT Range at Operating Voltage (VDC) - 40~450 V

Solar Starting Voltage - 60 VDC

Maximum Solar Open-Circuit Voltage (VDC) - 500

Maximum Solar Charging Current (A) - 100

Maximum AC Charging Current (A) - 100

Maximum Charging Current (Solar + AC) (A) - 100

Battery

Normal Voltage (VDC) - 24 V

Voltage Float Charge Voltage (VDC) - 27 V

Overcharge Protection (VDC) - 30.5 V

Battery Type - Lithium and Lead-Acid

General Information

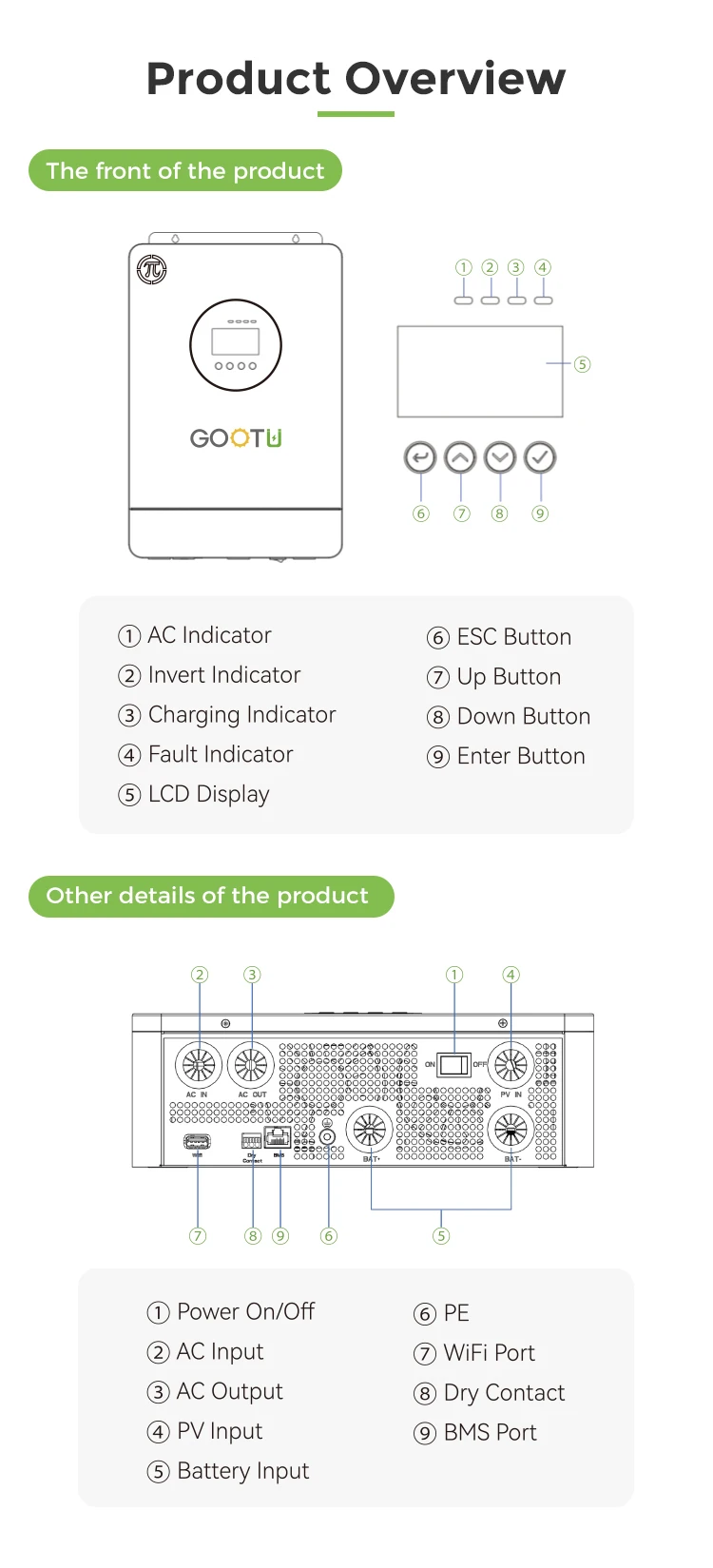

HMI - LCD Display

Interface - RS485/RS232/USB/Dry Contact

Monitoring - WiFi (optional)

Water Resistance - IP21

Operating Temperature -10°C~50°C

Relative Humidity - 5%~95% (non-condensing)

Storage Temperature -15°C~60°C

Net Weight (kg) - 6.4

Dimensions (W*H*D) - 420*284*94 mm

Maximum Operating Altitude - 4,000 m (power derating above 1,000 m)
